Brightness
3500+ nits with automatic brightness control.

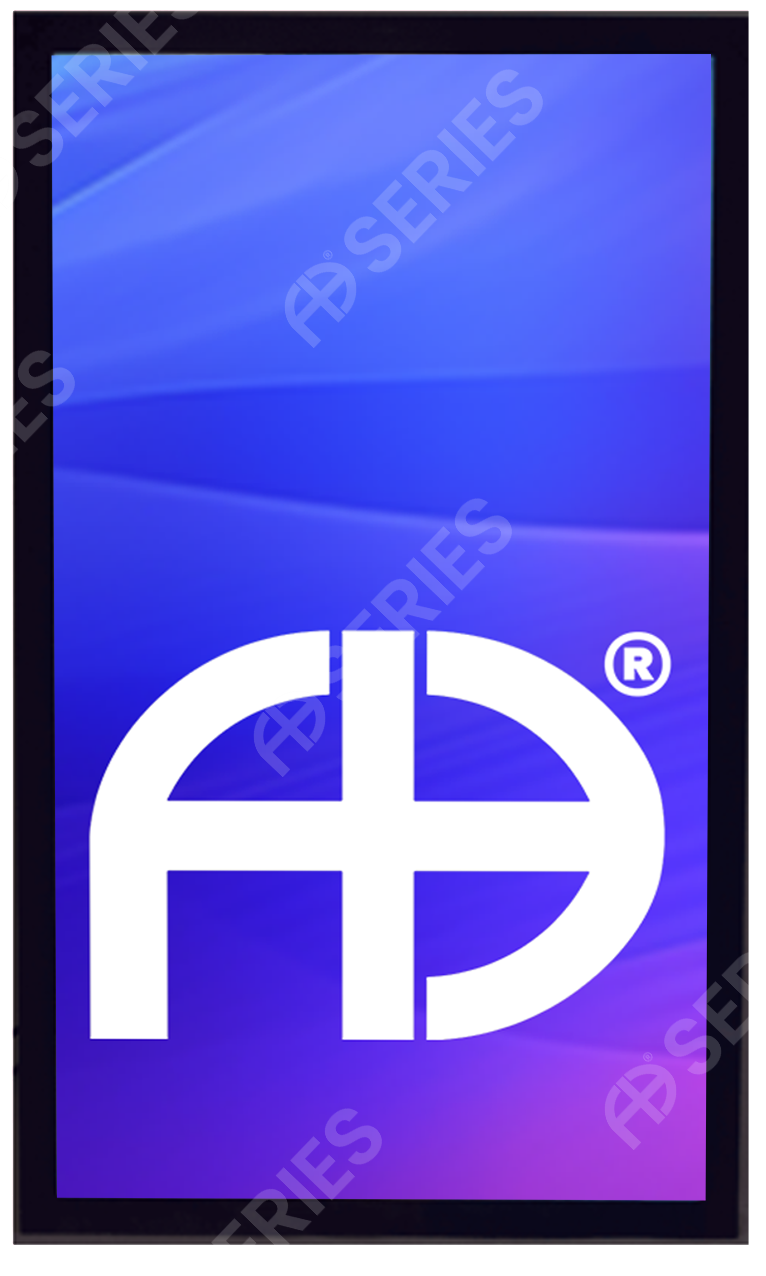

Outdoor industrial-grade LCD modules
A sealed, sunlight-readable display core for demanding outdoor projects.
Designed for integrators and enclosure manufacturers, the AD Series outdoor module brings together high-brightness LCD performance, environmental sealing, thermal control, protection and service access in a single integration-ready assembly.
Specification-led hardware
Designed around the environment and the outcome.
Environmental
Fully sealed IP67, fanless architecture for continuous operation.
Sizes
32, 43, 49, 55, 65, 75 and 86 inches, portrait or landscape.
Protection
IK10 anti-vandal glass with anti-reflection coating.
Optics
Optical bonding improves outdoor contrast and reduces internal reflection.
Service
Remote diagnostics, modular mounting and optional demountable power tray.
Project-ready options
Configure the right display.
- High-grade 110°C LCD components
- Passive cooling without filter maintenance
- External connection access
- Works with the selected CMS and player
- Rapid Mounting System and lift support up to 75 inches

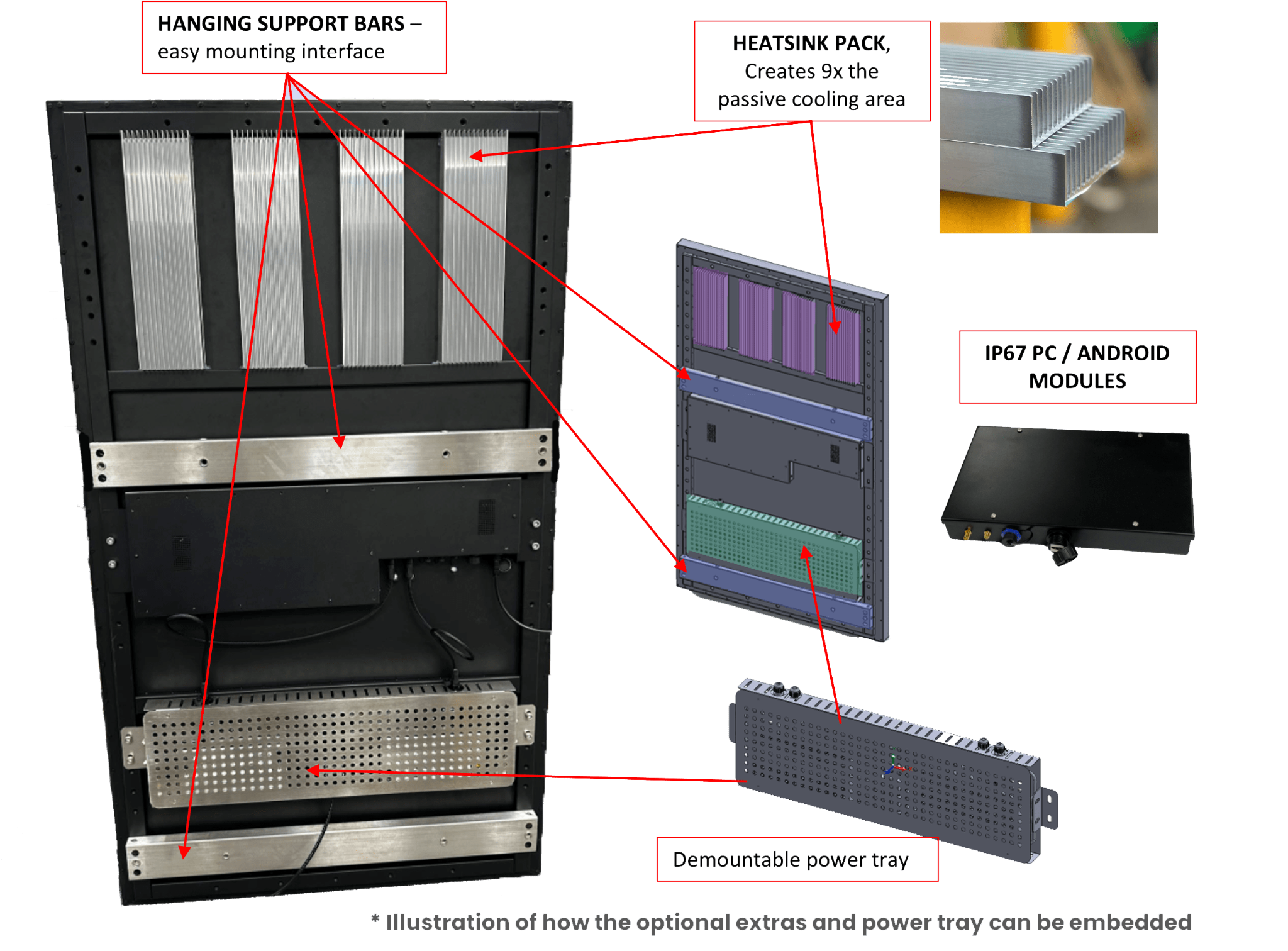

Integration options
Configure the module around the enclosure.
Optional mounting bars, passive heatsinks, an embedded computer and a demountable power tray support faster integration and servicing.
Continue exploring
Build the complete solution.
Frequently asked questions
Key specification questions.
What is outdoor industrial-grade lcd modules used for?
Designed for integrators and enclosure manufacturers, the AD Series outdoor module brings together high-brightness LCD performance, environmental sealing, thermal control, protection and service access in a single integration-ready assembly.
What specifications and options are available?
Brightness: 3500+ nits with automatic brightness control. Environmental: Fully sealed IP67, fanless architecture for continuous operation. Sizes: 32, 43, 49, 55, 65, 75 and 86 inches, portrait or landscape. Protection: IK10 anti-vandal glass with anti-reflection coating. Optics: Optical bonding improves outdoor contrast and reduces internal reflection. Service: Remote diagnostics, modular mounting and optional demountable power tray.
Can AD Series configure the hardware for a specific project?
Yes. Available project options include high-grade 110°c lcd components, passive cooling without filter maintenance, external connection access, works with the selected cms and player. Final specifications depend on the application, environment and required approvals.
