Display format
28-inch stretched LCD with 1920 × 360 resolution.
On-Street 28-inch Stretch Display
Compact passenger information for bus stops, platforms and shelters.
Purpose-built for passenger information, the AD Series 28-inch stretch display presents arrivals, departures, service alerts and wayfinding in a compact format suited to bus stops, platforms, shelters and other high-footfall public locations.
Specification-led hardware
Designed around the environment and the outcome.
Brightness
1400+ nits for high ambient-light environments.
Environmental protection
IP65-rated enclosure.
Impact protection
IK09 protection with a polycarbonate-protected front glass.
Configurations
Single and double-sided aluminium configurations.
Monitoring
Remote diagnostics with Android, Windows and Linux system options.
Project-ready options
Configure the right display.
- Arrivals, departures and service alerts
- 178-degree viewing angle
- Optional touchscreen configuration
- Platform and shelter signage
- Smart-city and high-footfall environments

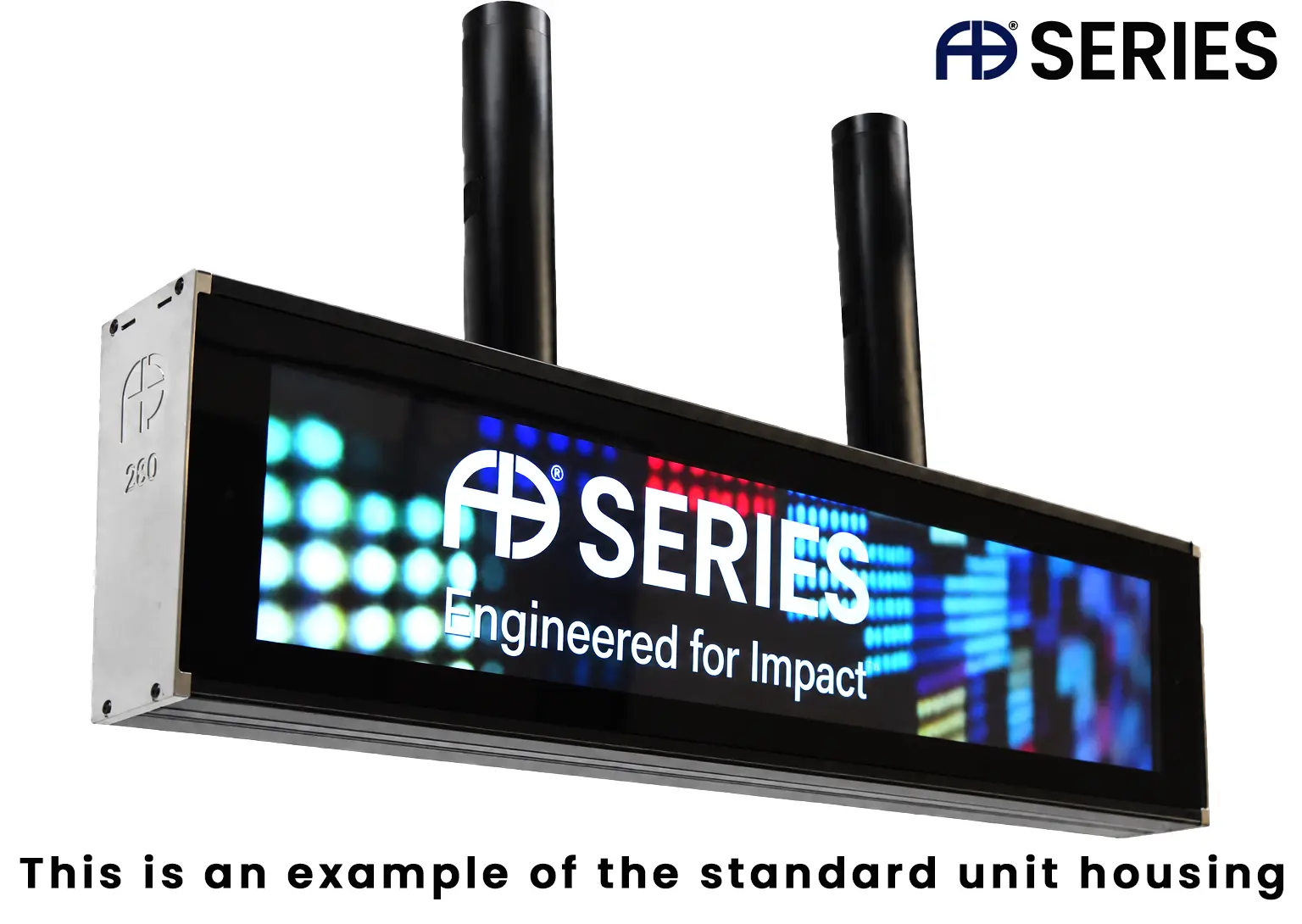

Standard housing
A compact passenger-information format.
The standard housing supports clear real-time information where mounting space is limited.
Custom housing
Configured around the installation.
Housing, mounting and finish can be adapted to suit the vehicle, shelter or wider passenger-information system.
Continue exploring
Build the complete solution.
Frequently asked questions
Key specification questions.
What is on-street 28-inch stretch display used for?
Purpose-built for passenger information, the AD Series 28-inch stretch display presents arrivals, departures, service alerts and wayfinding in a compact format suited to bus stops, platforms, shelters and other high-footfall public locations.
What specifications and options are available?
Display format: 28-inch stretched LCD with 1920 × 360 resolution. Brightness: 1400+ nits for high ambient-light environments. Environmental protection: IP65-rated enclosure. Impact protection: IK09 protection with a polycarbonate-protected front glass. Configurations: Single and double-sided aluminium configurations. Monitoring: Remote diagnostics with Android, Windows and Linux system options.
Can AD Series configure the hardware for a specific project?
Yes. Available project options include arrivals, departures and service alerts, 178-degree viewing angle, optional touchscreen configuration, platform and shelter signage. Final specifications depend on the application, environment and required approvals.
